When engine builders prepare a block for serious horsepower, the choice of rotating assembly dictates the engine's lifespan. Founded in Germany in the 1920s, Mahle’s motorsport pedigree is not a marketing gimmick, it is a century of metallurgical engineering forged in Formula 1, Le Mans, and touring car championships globally.
Unlike many aftermarket brands that repackage generic forgings, Mahle Motorsport engineers their own proprietary alloys, skirt coatings, and ring packs specifically tailored to individual engine platforms. If you demand uncompromised thermal stability and extreme cylinder pressure tolerance, here is exactly why Mahle Motorsport pistons are the benchmark for high-performance builds.
Preparing your block for forged internals? Check out our complete Mahle Motorsport collection here!
- Shop Mahle Motorsport Forged Pistons for Audi S & RS
-
Shop Mahle Motorsport Forged Pistons for BMW M and M-Lite
-
Shop Mahle Motorsport Forged Pistons for Cupra
-
Shop Mahle Motorsport Forged Pistons for Ford ST & RS
- Shop Mahle Motorsport Forged Pistons for Toyota GR
- Shop Mahle Motorsport Forged Pistons for Volkswagen GTI/R
The Mahle Motorsport Engineering Advantage
Mahle forged pistons are pressed into shape under thousands of tons of pressure, aligning the aluminum grain structure for superior strength. But the true advantage lies in their finishing treatments:
- Grafal® Skirt Coating: Mahle’s proprietary Grafal® is a resin-based, dry-film lubricant permanently bonded to the piston skirts. Crucially, Grafal® is compressible. It acts as a mechanical cushion between the piston and the cylinder wall, absorbing shock, preventing metal-to-metal scuffing on cold starts, and drastically reducing engine noise (piston slap).
- Hard Anodized Top Ring Grooves: In high-boost applications (such as big-turbo EA888s or tuned B58s), immense heat can cause the top steel ring to microscopically weld to the aluminum piston groove. Mahle combats this by hard-anodizing the top ring groove, creating a tough, wear-resistant barrier that entirely eliminates micro-welding and prevents the ringland from distorting under extreme pressure.
- Low-Drag Nitrided Ring Packs: A piston is only as effective as its seal. Mahle supplies premium, gas-nitrided steel ring packs designed with ultra-flat profiles. These rings provide a flawless seal against combustion blow-by while minimizing parasitic drag on the cylinder walls, freeing up horsepower.

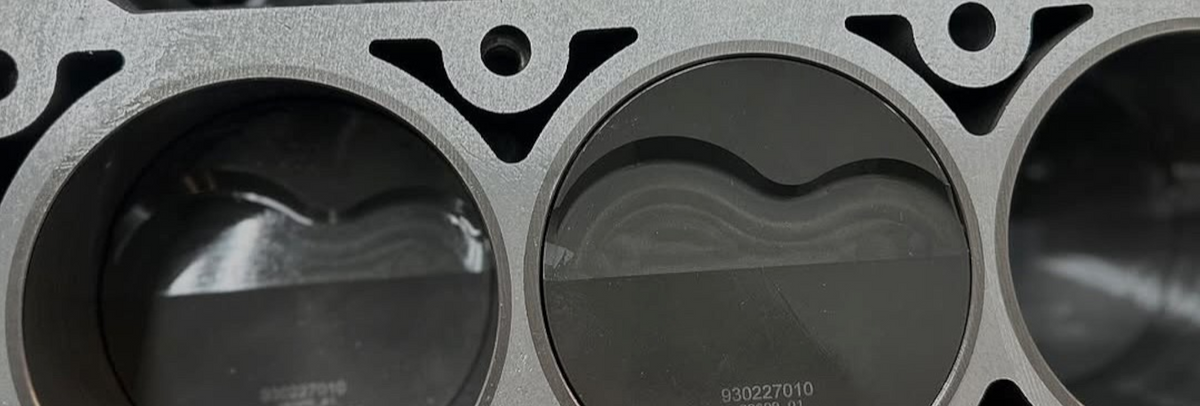

- CNC-Machined Crowns & Valve Reliefs: Every piston crown is 3D CNC-machined for optimal flame travel and features precision valve reliefs to safely accommodate high-lift aftermarket camshafts.
The Metallurgy: Selecting Your Alloy
Mahle Motorsport categorizes its forged pistons into two distinct proprietary alloys depending on your build’s severity:
| Feature | Mahle M142P Alloy (High-Silicon) | Mahle M124P Alloy (Low-Silicon) |
| Material Equivalent | 4032 Aluminum | 2618 Aluminum |
| Thermal Expansion | Minimal | High (Requires looser clearances) |
| Piston-to-Wall Clearance | Tight (Factory-like) | Loose (To accommodate heat expansion) |
| Cold Start Refinement | Exceptionally quiet | Mild "piston slap" when cold |
| Tensile Strength | High (Handles moderate to high boost) | Extreme (Virtually indestructible under massive boost) |
| Best Application | Fast-road, daily drivers, moderate tuning | Dedicated track weapons, high-boost drag racing |
Standard vs. Oversized Pistons: Sizing Your Bores
When ordering Mahle pistons, you must select the correct bore diameter. If you are tearing down an engine with high mileage or a spun bearing, the cylinder walls will likely have vertical scoring, glazing, or an oval taper.
To restore perfect compression, a machine shop will bore and hone the cylinders to a slightly larger diameter to expose fresh, perfectly round iron.
- Standard Bore: Matches the factory dimensions. Only suitable for brand-new blocks or engines with flawless cylinder walls requiring a light surface hone.
- Oversized Bore (e.g., +0.5mm to +1.00mm ): Designed to precisely fit a block that has been machined to a larger diameter.
JXL Setup Tip: Never order pistons until your machine shop has inspected your block. The machinist will measure the deepest scratch in your cylinder wall and determine exactly how much metal must be removed to fix it (eg. 0.5mm). You can then order the corresponding oversized Mahle pistons, and the machinist hones the block to exactly match those specific pistons.
