HEL Hyundai i20 N Oil Cooler Kit

After the success of our recent development work on the Japanese hot hatch, the FK2, we were really keen to look at another one new to the tuning market which would benefit from the same treatment, given how little there is currently on the market for it. As luck would have it, one of our customers, CTC Performance kindly lent us his car for this development work.

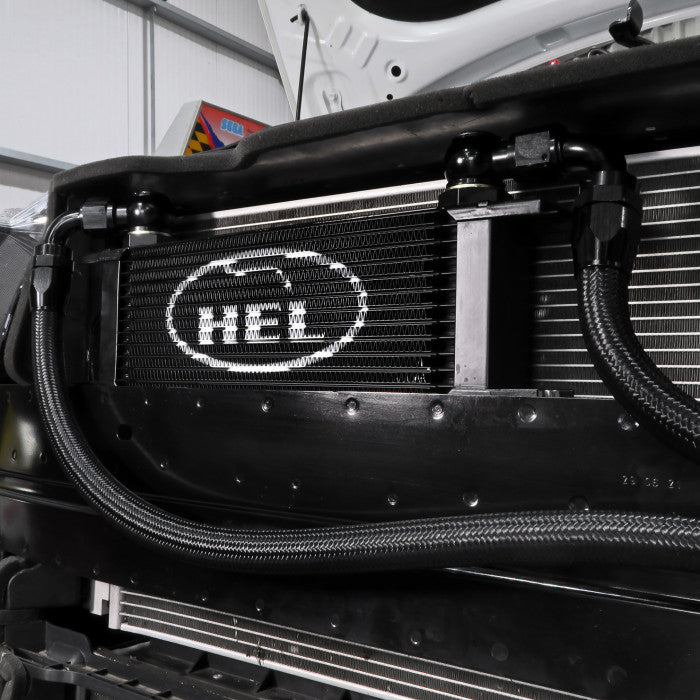

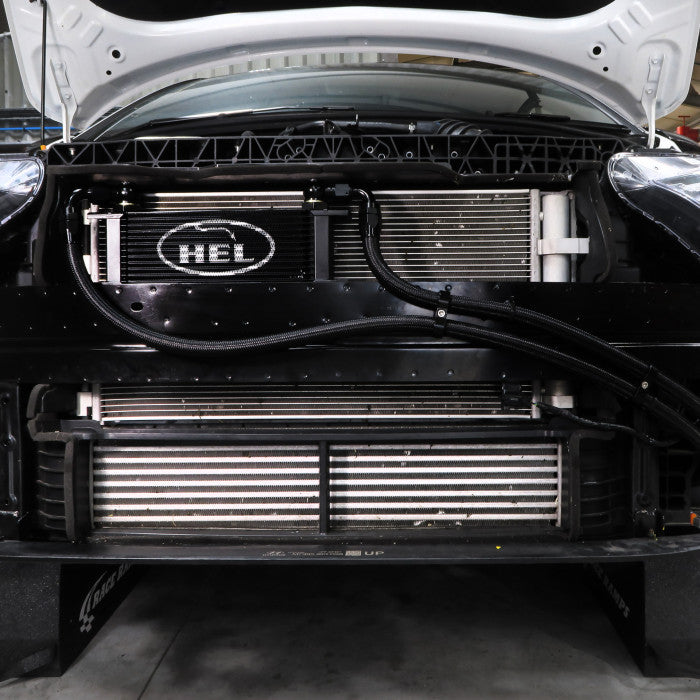

Again we knew that we wanted to create an easy to fit oil cooler kit, so we 3D scanned the engine bay to find the best solution. As a result, we manufactured 2 custom billet aluminium mounting blocks to mount the oil cooler on the crash bar. The cooler then sits in direct air flow in the space in the grille area, the perfect location for effective cooling.

We based the kit around the popular Swedish-manufactured Setrab Series 6 ProLine oil cooler. The 13 row fits perfectly in the space we had to use and gives a great balance between minimising pressure loss while giving very effective cooling.

We've been using Setrab oil coolers for over 10 years without any issues and their performance is unrivalled. There are lots of cheaper imported options available, but none as reliable (there aren't many things worse than having a burst oil cooler!). In fact, we've had reports of front end collisions and the Setrab oil cooler was the only thing that still worked!

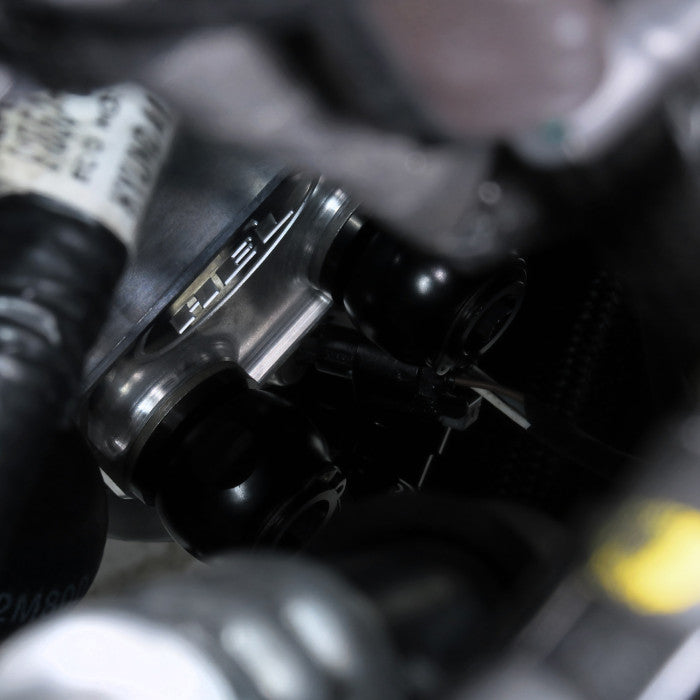

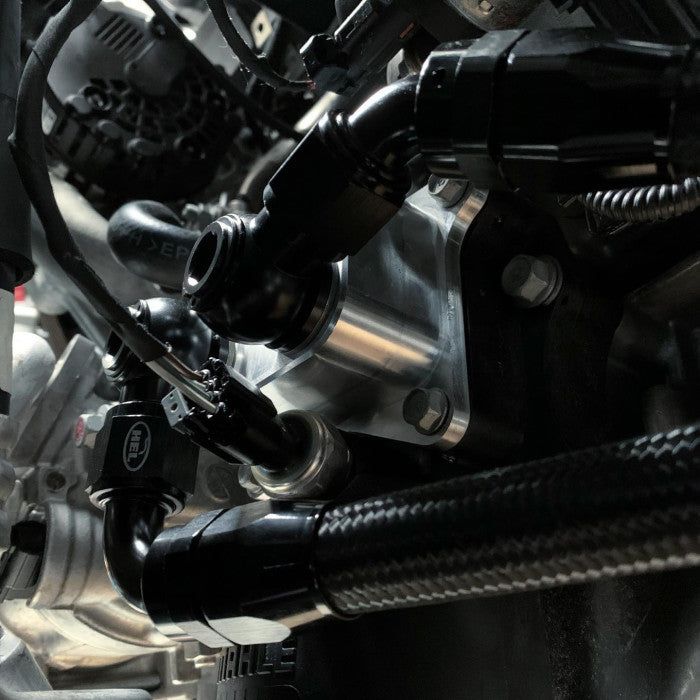

This comprehensive kit arrives with preassembled HEL braided hoses and black anodised aluminium fittings. These AN10 high flow performance hoses deliver and return oil from the oil cooler to a unique HEL Performance billet thermostatic oil take off (Thermostat is a 92°C 197.6°F). We've found the 92°C option gives you the perfect balance between cooling when needed and letting the engine warm up safely. It's also dangerous for the oil to be too cold and the thermostat controls the temperature with precision.

This direct-fit kit offers a safe and reliable cooling system for the i20N which is becoming known now its being used on track around the world to suffer heat issues. It comes complete with easy-to-understand instructions and our technical support team are always happy to answer any questions you may have.

What's Included

• Setrab Series 6 ProLine 13 row oil cooler with AN10 banjo adapters.
• HEL custom aluminium mounting blocks.
• Solid billet oil take off plate with a 92°C thermostat.
• Preassembled AN10 HEL braided hoses with anodised aluminium fittings (heat sleeve optional).
• Stainless steel mounting hardware.
• Installation instructions.
