Powerflex Dual-Mount Rear Differential Bracket - BMW F87 M2, F80 M3 & F82 M4
Powerflex Dual-Mount Rear Differential Bracket - BMW F87 M2, F80 M3 & F82 M4
Couldn't load pickup availability
Shipping, Returns & Delivery Information
Shipping, Returns & Delivery Information
- With popular products we will always aim to hold stock to ensure rapid delivery times across the UK.
- With less commonly ordered products we rely on drop shipping from our suppliers, this can occasionally result in delays in delivery times.
- Where a product is required urgently please contact us first before placing your order so we can check stock and delivery times to ensure no disappointment.
- Once an order is placed we aim to be in touch within 24 hours with either your delivery details or estimated time of delivery for your products.
- Need to return an item? No problem, get in touch and we can explain the next steps.
Price Match
Price Match
Seen it cheaper elsewhere? Get in touch with where and how much and we'll not only do our best to match it, where possible we aim to beat it!
Product Queries
Product Queries
Got a question about this product? Get in touch via our online chat or email and our team of experts will get back to you as soon as we can with an answer.
Does this fit my car?
Does this fit my car?
This product is compatible with the following models and year ranges:
BMW M2 F87 (2016-2018)
BMW M2 Competition F87 (2018-2021)
BMW M3 F80 (2014-2020)
BMW M4 F82/F83 (2014-2020)

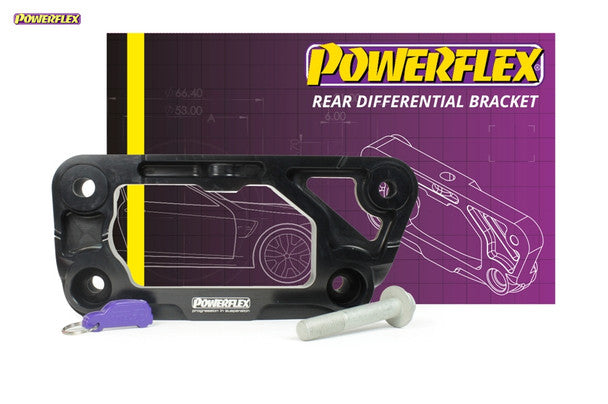

PRODUCT NOTES: Supplied complete with M14 bolt, thread locker and Powerflex keyring With the newerF8xM2/M3/M4's making big power and having superb chassis straight from the showroom, it's no wonder they're often found at the most serious of track-days or at tuning shops across the globe.Unfortunately, the power that makes these cars so fun to drive eventually has an impact on the vehicle components, most notably the rear differential bushes.Despite having the provision for two mounting bushes on the factory tubular subframe, BMW opts to use only a single offset bush to mount the diff bracket to the subframe. This essentially creates a pivot point for the diff under torque loading, especially if the 4x front diff bushes are worn and softened.With hard launch starts and sudden and frequent on-off throttle changes, this puts the single rear OE rubber bush through extreme torsional and directional forces, resulting in accelerated ageing with failure often seen at around the 30-40,000 mile mark and an unsettled and potentially clunky rear-end.We are proud to release a high-performance solution to this problem, giving you the tools to re-establish rear-end stability on yourF8xM2/M3/M4.PFR5-4030 Dual Mount Diff Bracketis made from our in-house CNC machined6082 High-Tensile Aluminiumand is designed to utilise the secondary mounting position on the OE subframe. With the addition of a second bush, this prevents the diff from twisting under load, providing benefits such as:Reduced drivetrain movementImproved throttle responseA more controlled and consistent on-off throttle chassis response.Improved tyre-to-road power transfer reducing wheel hopReduced strain on fitted bushesThe corrosion-resistantSatin Black Anodised Aluminium Bracketis optimised for high stress and deflection whilst withstanding high torque loads butis designed to function equallyon standard or modified vehicleswith either a single OE bush or dual aftermarket bushes.Although the bracket can be fitted without the need to remove the subframe from the vehicle completely, we would naturally recommend combiningPowerflexproducts by using our already hugely popular 80A durometerPFR5-4026Rear Diff Mounting Bushfor both subframe rear mounting positions with the addition of ourPFR5-4025Rear Diff Front Mounting Bushesfor the front for the ultimate in differential control and a lasting fast-road or track solution.
BUSH SIZE IF APPLICABLE:
NUMBER OF BUSHES IN PACK:1
REPLACES OEM BUSH PART NUMBERS:33172284775/
-
Road Series
For Road and fast Road use
POWERFLEX Road Series bushes improve your cars road holding and chassis performance by controlling the amount of unwanted flex in the suspension. They offer Prolonged tyre life, Improved performance, Increased safety, Greater cost-effectiveness.
For Track and Motorsport use.
POWERFLEX Black Series bushes are manufactured using our Black 95 Shore A compound to provide maximum control of chassis geometry. They are designed for the Track, ready to Race and are engineered to be the best.
