AC Schnitzer AC5 Complete Wheel Set (10.5x22"/11.5x23") - BMW X5M/X6M F9x

Features of the AC5 Wheel:
- Made in Germany
- Weight optimised
- Developed exclusively for BMW vehicles
- With exclusive AC Schnitzer logo
- Warranty 2 years
- Production monitored according to ISO standard

What's included (No Tyres):
- 2x Front AC5 10.5x22" Wheels
- 2x Front Spacers & Extended Bolts
- 2x Rear AC5 11.5x23" Wheels
- 2x Rear Spacers & Extended Bolts

What's included (With Tyres):
- 2x Front AC5 10.5x22" Wheels
- 2x Front Spacers & Extended Bolts
- 2x Front Tyres (295/30/R22)
- 2x Rear AC5 11.5x23" Wheels
- 2x Rear Spacers & Extended Bolts
- 2x Rear Tyres (315/25/R23)
- 4x TPMS Sensors
Mounted and Balanced

Philosophy/Design
Technically modern design combined with a high quality production process, these attributes characterise the AC Schnitzer AC5 Flowforming wheel generation, which is launched in the sizes 10.5J x 22", 10.5 x 23" and 11.5J x 23", in the colour variants Bi-Colour Silver/Black and Black.

The circumferential undercut reflects the high technical standard of the AC5 Flowforming wheel. This is because this design element can actually only be realised if it is machined out of a solid material, such as is required in the forging process, as it is located behind the spokes. The undercut of the AC5 Flowforming wheels is particularly visible on the Bi-Colour version, as it brings out the high-quality aluminium with its silver surface.

Material
Only high quality aluminium alloys with the AlSi7 or AlSi11 specification are used.
Both types of material are additionally heat treated in the production process, which results in higher strength and simultaneous weight reduction. Material samples during the production process guarantee the constant and high quality of the material.

Production
Due to the production process, the new AC5 Flowforming wheels are lighter than conventionally cast alloy wheels and this is measurable: the 10.5J x 22" weighs just 18.2 kg, the 10.5 x 23" weighs 19.5 kg and the 11.5J x 23" wheel also weighs only 20.5 kg.

The flowforming process is one of the most advanced manufacturing technologies in wheel industry. In this production process, after the actual aluminium casting, the raw product is further processed by rolling it out. This step serves to compress the metal, which guarantees greater stability and impact resistance of the wheel.

On the other hand, the improved stability also allows the design of the wheels to be more filigree, as the wall thicknesses can be significantly thinner compared to conventionally manufactured rims.

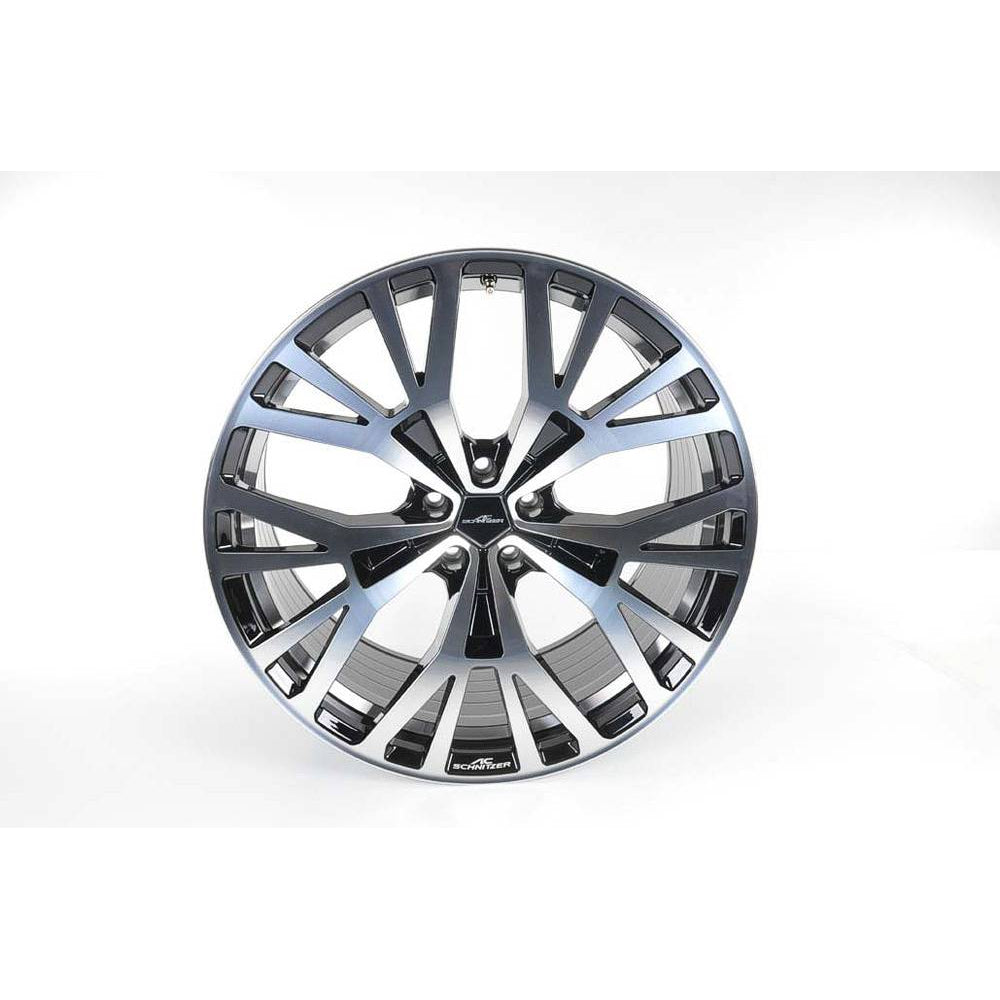

Bi-Colour Surface
In this process, the wheel is first primed, then completely painted, and finally sealed with an acrylic clear coat. The surfaces that will later have a shiny metallic finish are then machined. Finally, a two-layer clear coat is applied, consisting of a polyester primer and the acrylic clear coat.

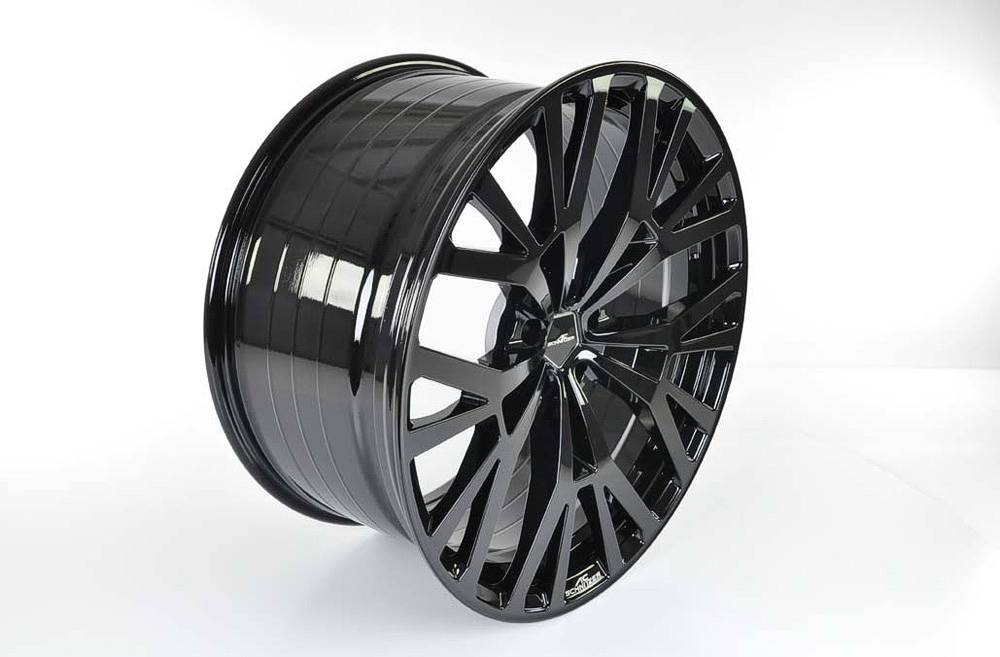

Black Surface
In this process, the wheel is first primed, then completely painted. A two-layer clear coat is then applied, consisting of a polyester primer and the acrylic clear coat.

Test Procedures / Safety
After their design, the first sample rims are manufactured under real production conditions. These must undergo a multitude of tests. Among other things, the strength is tested. The "wheel life" is simulated in the bending circumferential test. Every AC Schnitzer wheel must withstand this intact in order to be allowed to be produced and sold at all.

This is followed by vehicle specific tests, including test installations with check of unobstructed movement and driving tests on public roads and on race tracks. Only after these procedures our rims receive their homologation, i.e. the approval to be used in road traffic.

Wheels are safety relevant components. Therefore, they are checked and tested with the greatest care. This starts with the first chemical material tests and ends with hard testing machine endurance runs:

- § 30 StVZO wheel guideline
- ECE R124
- Bending-rotation tests
- 90° impact test
- Unwinding tests
